Kranzle

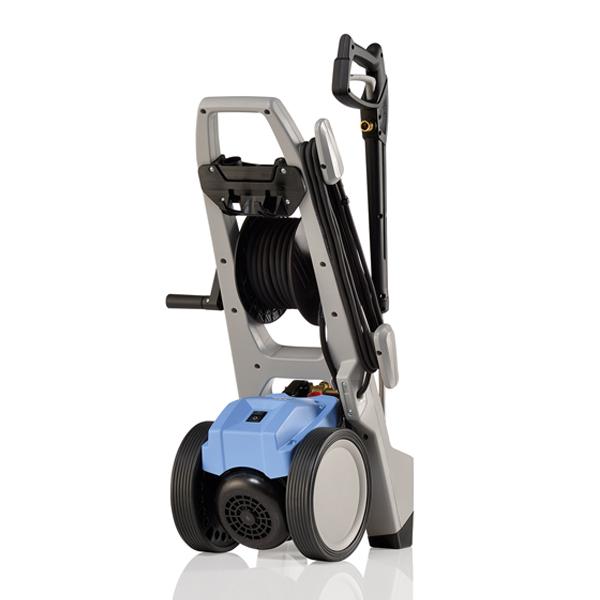

Kranzle X Series

The impressive construction of the new Kranzle X-series achieves a powerful combination of design and functionality!

Kranzle XA15 TST:

Product characteristics:

  • Quick Change-Click System
  • Accessory box for convenient storage of nozzles/accessories
  • Pressure regulation, allows pressures to be set to suit any task
  • Integrated hose drum with 12 metre steel braided high-pressure hose
  • Storage for trigger gun with safety catch and lance
  • Quick-Click Dirtkiller nozzle
  • 5 m power lead with molded UK 3-pin plug with cable reel
  • Very quiet and durable electric induction motor (1,400 rpm)
  • Total-Stop system improves seal life-span and reduces power consumption
  • Water inlet suction height: up to 1.5 metres

Kranzle XA17 TST:

Product characteristics:

  • Quick Change-Click System
  • Accessory box for convenient storage of nozzles/accessories
  • Pressure regulation, allows pressures to be set to suit any task
  • Integrated hose drum with 12 metre steel braided high-pressure hose
  • Storage for trigger gun with safety catch and lance
  • Quick-Click Dirtkiller nozzle
  • 5 m power lead with molded UK 3-pin plug with cable reel
  • Quiet and durable electric induction motor (2,800 rpm)
  • Total-Stop system improves seal life-span and reduces power consumption

Technical Data

XA15 TST XA17 TST
Operating pressure adjustable bar / MPa: 30-130 / 3-13 30-150 / 3-15
Max. admissible overpressure bar / MPa: 150 / 15 170 / 17
Connected load, V / ~ / Hz / A: 230 / 1 / 50 / 9.8 230 / 1 / 50 / 12.8
Motor speed Rpm: 4-pole low-speed motor 1400 2 Pole 2800
Water output l/min & l/h: 8 / 480 9 /540
Power intake / Power output kW: 2.25 / 1.7 2.95 / 2.2
Dimensions (L x W x H) mm: 470 x 360 x 875 470 x 360 x 875
Weight (kg): 31 31

Equipment:

  • Hose drum
  • Steel braided high-pressure hose (m) 12
  • Trigger gun with safety catch (model) M2000
  • Click system with flat jet (nozzle size) 20033
  • Click system with Dirtkiller (nozzle size) 033
