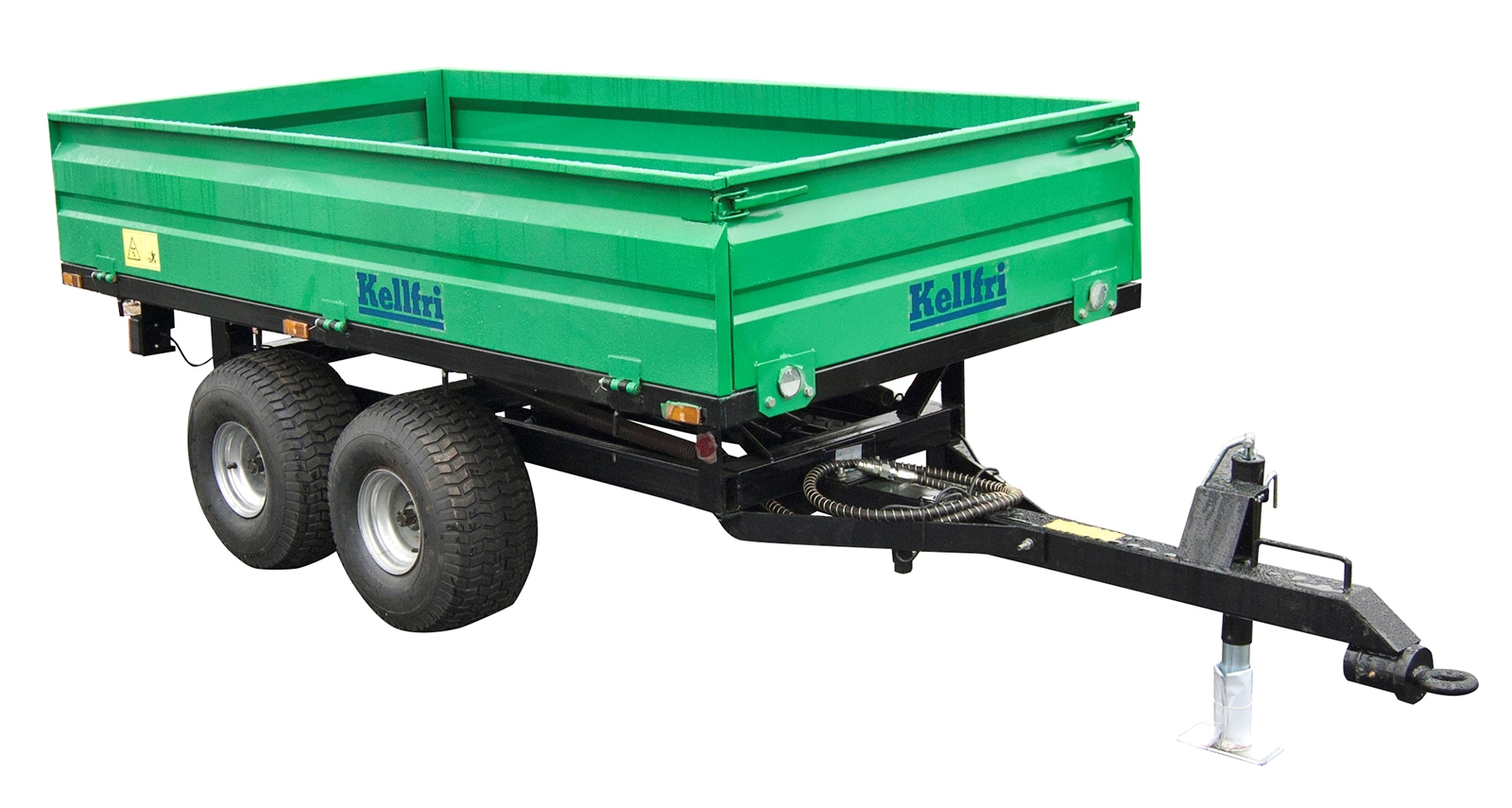

Tipping trailer that carries 2.5 tonnes with hydraulic tipping and powerful bogie.
- Wide tyres and bogie – low ground pressure
- Lights and reflectors
- Adjustable parking jack
- Rotatable tow bar
- Fold-down sides
Tipping trailer TV25 has fold-down sides and a hydraulic tipping ram and carries 2.5 tonnes. Equipped with lights, reflectors, adjustable parking jack and tarpaulin attachment hooks, profiled sides for stability.
A very versatile trailer for lightweight jobs, it is at home on sensitive grass surfaces as it has a low ground pressure.
The tipping trailer requires a single-acting hydraulic outlet on the tractor and has an a hydraulic ½ inch, quick coupling male hose.
Product requires assembly.
The extension sides can be bolted or welded to the trailer. For bolting, holes must be made by the customer.
Product Code
23-TV25
Specification
- Axle type : Bogie
- Floor height from the ground 700 mm
- Floor dimensions 2,400 x 1,270 x 400 mm
- Wheels 20*10-8
- L x W x H 3,700 x 1,270 x 1,100 mm
- Max. tipping angle 45°
- Max. load 2,500 kg
- Standard side 400 mm
- Tip Rear
- Operating weight 335 kg
- Volume 1.25 m³
Please Note:
This item is supplied in a kit and will require building up if delivered direct to you.
Optional Extra
Extension sides in steel mesh for TV25 Tipping Trailer.
Product Code 23-TV25FH
Extend the load volume with these 40 cm high extension sides. The extension sides can be bolted or welded to the trailer. For bolting, holes must be made by the customer.
