EUROTOP 620N / 620A / 762C – Centre swath rakes

EUROTOP 620N

Features include:

• The EUROTOP 620N is a compact twin rotor rake and is ideal when access is restricted.
• Twin rotor machines have a fixed working width at 5.9m but the swath width is variable by changing the timing of the  cam tracks
• Largest diameter cam tracks and the biggest bearing support distance on the market.
• 10 tine arms that are detachable
• LIft lock on mounted machines
• Twin rotor machines can run in transport position.

Go to Specification

NEW – TOP 762C

The 762C is a new twin rake from Pöttinger that has been designed on high forage quality, perfect ground tracking and extreme manoeuvrability. The new centre-swath dual rakes have been developed to deliver unique manoeuvrability and protection of the ground and forage.

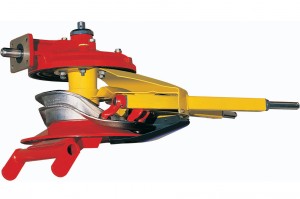

• The new TopTech+ rotor unit combines proven technology with a new design: the new rotors are 3.30 m on the TOP 762 C and 13 tine arms retain their field-proven characteristics.
• Pöttinger offers the largest cam track diameter of 420 mm and a tine arm bearing spacing of 600 mm.
• The large diameter and smooth cam track without steep inclines ensure uniform tine movement and give the tine arms maximum stability with minimum stress on the arm bearings.
• The tine arms are easy to replace using just two bolts. If a collision should occur, a damaged tine arm can easily be removed and replaced. This is another positive contribution to ensuring availability of the machine.
• The cam track can be adjusted according to changing forage quantities and harvesting conditions.
• The rotor transmission unit is extremely rugged with the gears submerged in oil and completely sealed.
• A large diameter gear wheel guarantees smooth running and a long service life. The complete system is fully encapsulated and sealed to keep out dust.
• The new rotor unit guarantees more productivity, stability and reliability at the same time as enhanced service friendliness.
• In spite of the impressive rotor diameter of up to 3.30 m the transport height is below 4 metres without having to remove the tine arms. These machines are also narrow during transport with a width of just 2.55 m (optional extra) for quick and safe transfer from one field to the next.
• For the highest stability on slopes, the chassis frame is available with an outside width of 2.55 m (optional extra) or 2.90 m (standard)

The TOP 762 C have two different ways of adjusting the working width:

• Version 1:  mechanical using adjustment spindle. This system provides working widths between 6.9 and 7.4 m on the TOP 762 C
• Version 2: hydraulic. This system allows you to adjust the working width between 6.9 and 7.6 m on the TOP 762 C.

Go to Specification

Rake Specifications

	620N	762C – NEW
Working width	5.9 m	6,9 – 7,6 m
Variable working width adjustment	Yes – Mechanical Cam track timing	Yes – Mechanical Cam track timing Hydraulic (Optional)
Rotor diameter	2.82 m	3,3 m
Transport width	2.7 m	2,9 m 2.55m (optional)
Transport height	3.4m m	3,99 m
Transport length	tbc	5,83 m
Parking height without tine arms removed	3.4 m	3,99 m
Parking height with tine arms removed	2.9 m	3,5 m
Tine arms per rotor	10	13 pcs.
Removable tine carrier arms per rotor	10	13 pcs.
Tines per tine arm	3	4 pcs.
Weight	860 Kg	1980 kg
Mounting	3pt linkage mounted	Trailed hydraulic folding
Tires – chassis		260/70-15,3
Swath placement in direction of travel	middle	middle
Height adjustment system	Hand crank	Hand crank
Axle (standard)	single Optional Tandem	3-wheel chassis5 Wheel chassis (optional)
Rotor tires (standard)	16 x 6.5-8	16 x 6,5-8
Rotor unit	Toptech	Toptech plus
Wide angle P.T.O.	Wide-angle PTO shaft on one side	Wide-angle PTO shaft on one side
Multitast	N/A	Standard

Want to see more models  twin  rotor rakes  available from  Pottinger  please visit their website
