Pottinger

Single rotor rakes

EUROTOP 340N

Pottinger 340N rakeThe EURTOP 340N has a working width of 3.4m (11’2″) with very large diameter cam tracks thus giving less ware and provides the biggest bearing support. With detachable arms, the machine becomes a very narrow rake for transport.

Other features include:

Pivoting headstock with heart-shaped pivot pin retainer

  • Perfect cornering with the windrower following in the tractor’s tracks
  • When lifted the machine swings into the central position
  • Windrower cannot crab sideways, even on slopes
  • Pin interlock – to prevent freedom of movement for road transport, just relocate the locking pin
  • Double-acting shock absorbing struts on both sides ensure the machine remains centred, even on slopes

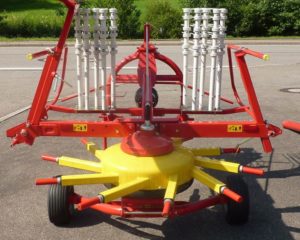

Rigid headstock with pivot wheels for mountainous terrainPottinger 340N rake. 1

Comfortable operation

  • Exact adjustment of working height using hand crank – easy to use, maintenance free
  • Infinitely adjustable swath curtains – the swath curtains can be adjusted to match the quantity of forage and the width of the swath
  • Hydraulic swath curtain lifting / lowering for highest level of comfort

.

EUROTOP 340N Specification

Working width 3,4 m
Rotor diameter 2,82 m
Transport width 1,67 m
Tine arms per rotor 10 pcs.
Removable tine carrier arms per rotor 10 pcs.
Tines per tine arm 3 pcs.
Weight 350 kg
Mounting Rear 3-point linkage
Main wheels rigid
Swath placement in direction of travel Left
Height adjustment system Hand crank
Axle (standard) Single axle
Rotor tires (standard) 16 x 6,5-8

Want to see more models single rotor rakes available from  Pottinger  please visit their website.



Images

Videos

Price list

Please contact us for our best price.

Enquire
